Product Description

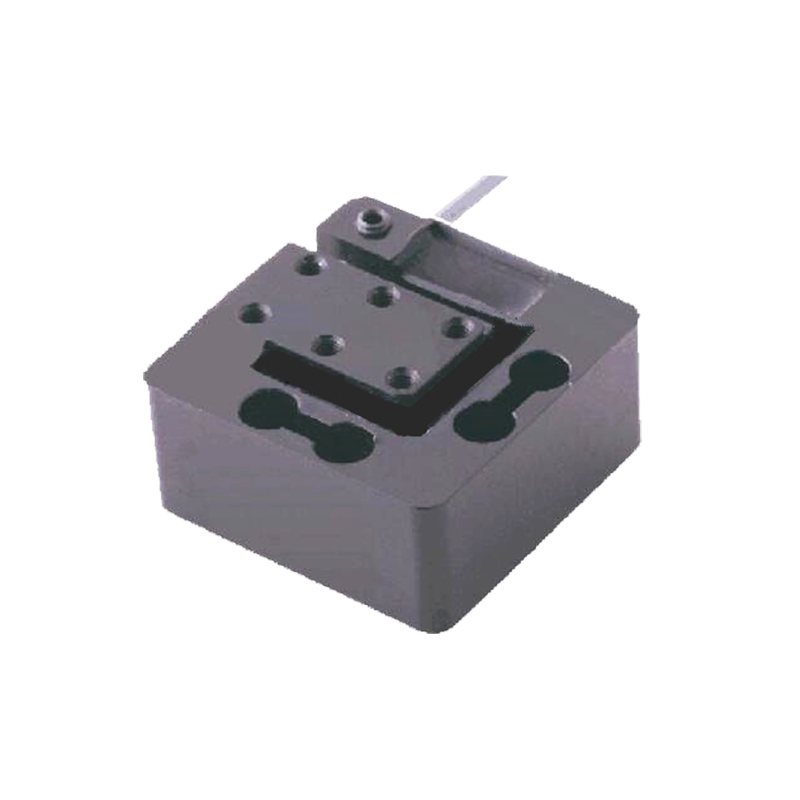

3 Axis Force Sensor
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install,IP66 protection
Dimension is customizable
Precision control of mechanical arm,grinding and polishing for Spherical,carved processing of machining center,precision testing of medical equipment
Specifications
| Specifications | Technique |
| Capacity(N) |
X:50/100/200/300/500/1000/2000 Y:50/100/200/300/500/1000/2000 Z:50/100/200/300/500/1000/2000/5000 |
| Rated output | ≈1.0mVV |
| Zero balance | ±3%F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Interference error | 0.5%F.S. |
| Creep(300min) | 0.02%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-75℃ |
| Safe overload | 150%F.S. |
| Utimate overload | 300%F.S. |
| Cable size | Φ5×4000mm |
| lP class | IP68 |
Mounting Dimension
Load Direction
Wiring Code
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
